0 to 100W TD-series Wireless Charging/Powering Modules

0 - 100W Wireless Charging Module (Model: TD01)

  • Input: DC24V
  • Output: DC12 - 21V, 3A Max.
  • Charging Z-Distance: 15-35mm
  • Offset tolerance: ±10mm
  • Typical efficiency: 89% @25mm
  • Dimension:
  • Tx PCBA 90x90x18mm; Tx coil 100x100x5.5mm
  • Rx PCBA 90x90x18mm; Rx coil 100x100x5.5mm
  • Protection: FOD, OCP, OVP, OTP
  • Certificates: Products meet TÜV CE FCC UL certification requirements.

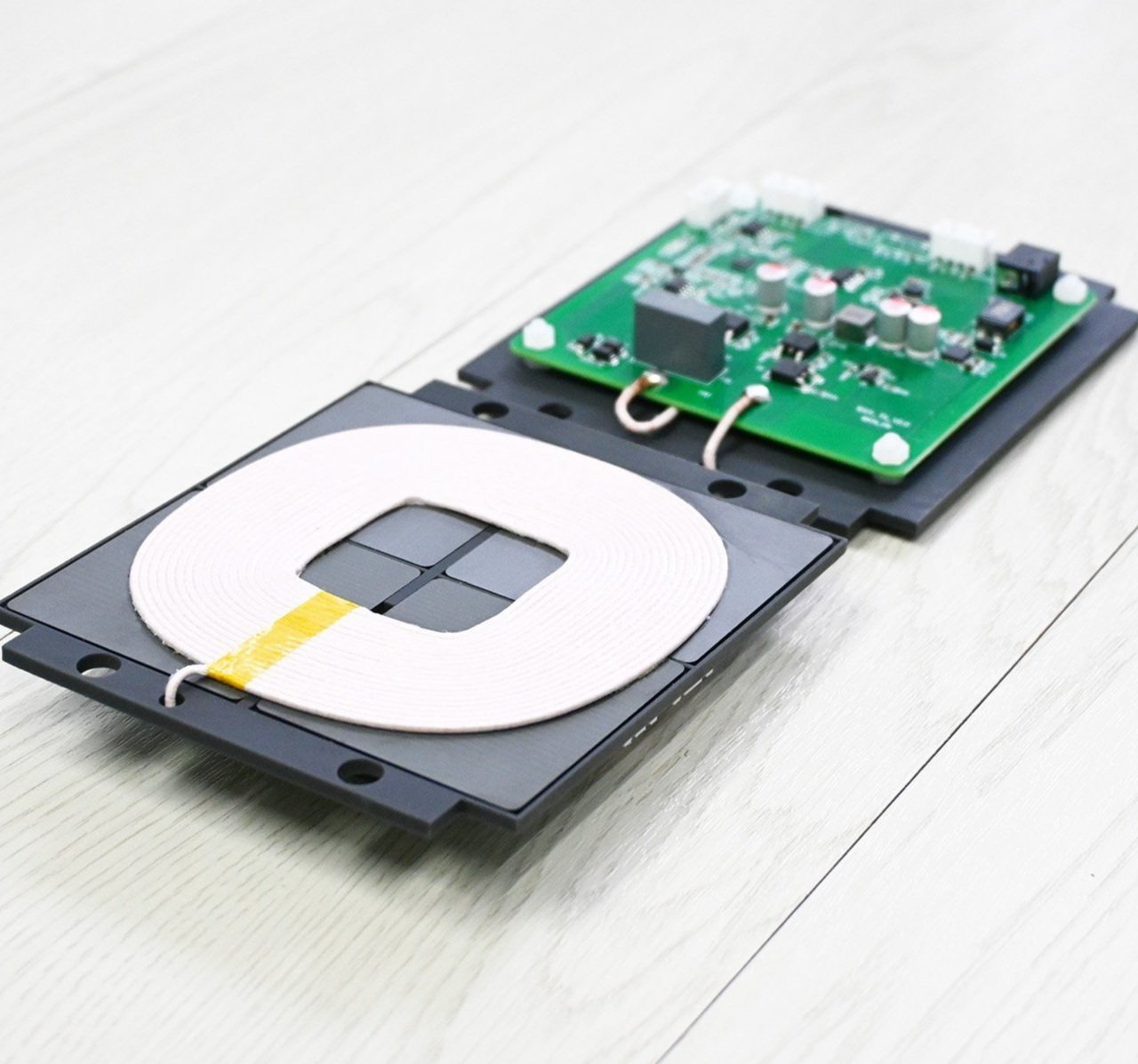

0 - 100W Wireless Powering Module (Model: TD05)

  • Input: DC24V
  • Output: DC24V/4A
  • Powering Z-Distance: 10-25mm
  • Offset tolerance: ±10mm
  • Typical effiency: 85% @25mm
  • Dimension:
  • Tx PCBA 90x90x18mm; Tx coil 100x100x6.5mm
  • Rx PCBA 90x90x18mm; Rx coil 100x100x6.5mm
  • Protection: FOD, OCP, OVP, OTP
  • Certificates: Products meet TÜV CE FCC UL certification requirements.
