500 to 3000W TF-series Wireless Charging Modules

500 - 800W Wireless Charging Modules (Model: TF02)

  • Input: DC48V
  • Output: DC42V/54.2V, 15A Max.
  • Charging Z-Distance: 25-35mm
  • Offset tolerance: ±15mm
  • Typical efficiency: 95% @30mm
  • Dimension
  • Tx PCBA 130x130x26mm; Tx Coil 140x135x6mm
  • Rx PCBA 130x130x23mm; Rx Coil 140x135x6mm
  • Protection: FOD, OCP, OVP, OTP
  • Certificates: Products meet TÜV CE FCC UL certification requirements.

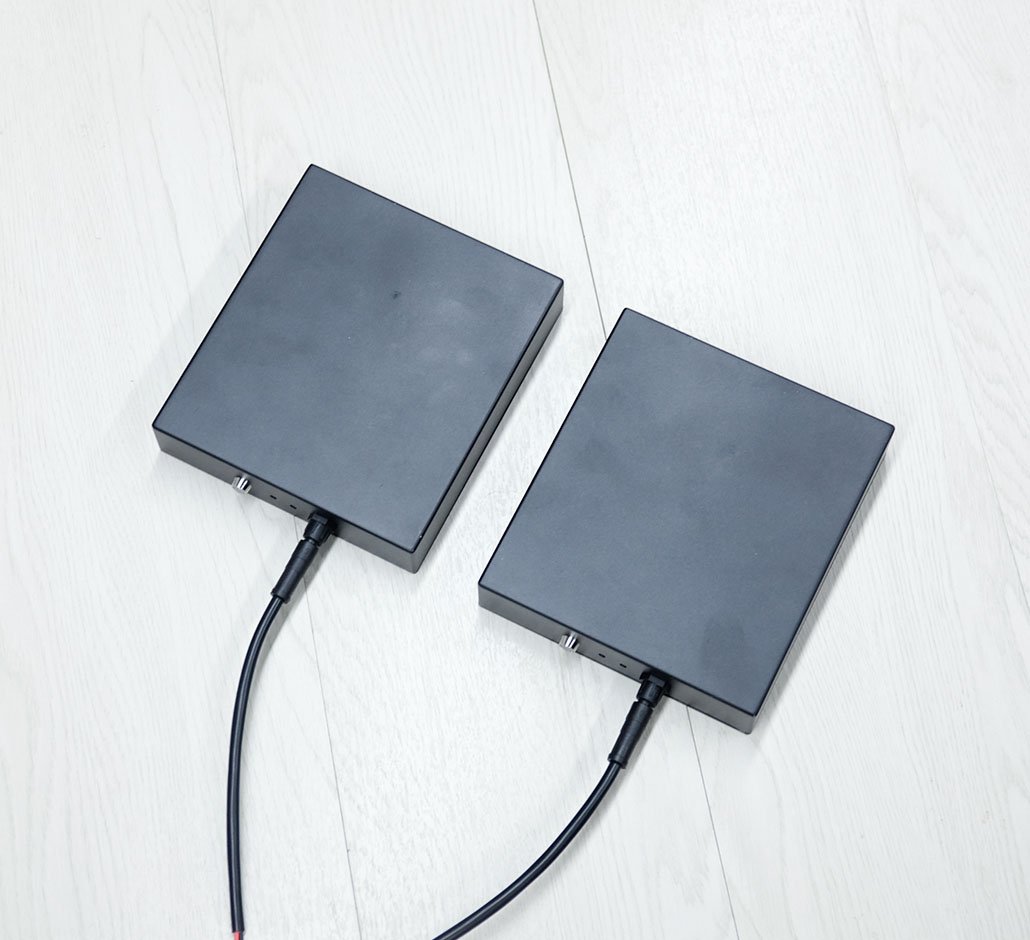

1200W Wireless Charging Modules (Model: TF03)

  • Input: AC220V
  • Output: DC40-60V, 20A Max.
  • Charging Z-Distance: 10-40mm
  • Offset tolerance: ±15mm
  • Typical efficiency: 85% @20mm
  • Dimension
  • Tx case 350x216x131mm
  • Rx case 240x122x48mm
  • Protection: FOD, OCP, OVP, OTP
  • Certificates: Products meet TÜV CE FCC UL certification requirements.

3000W Wireless Charging Modules (Model: TF04)

  • Input: AC220V
  • Output: DC40-60V, 50A Max.
  • Charging Z-Distance: 35-75mm
  • Offset tolerance: ±30mm
  • Typical efficiency: 87% @40mm
  • Dimension
  • Tx case 360x335x120mm
  • Rx case 235x235x80mm
  • Protection: FOD, OCP, OVP, OTP
  • Certificates: Products meet TÜV CE FCC UL certification requirements.
